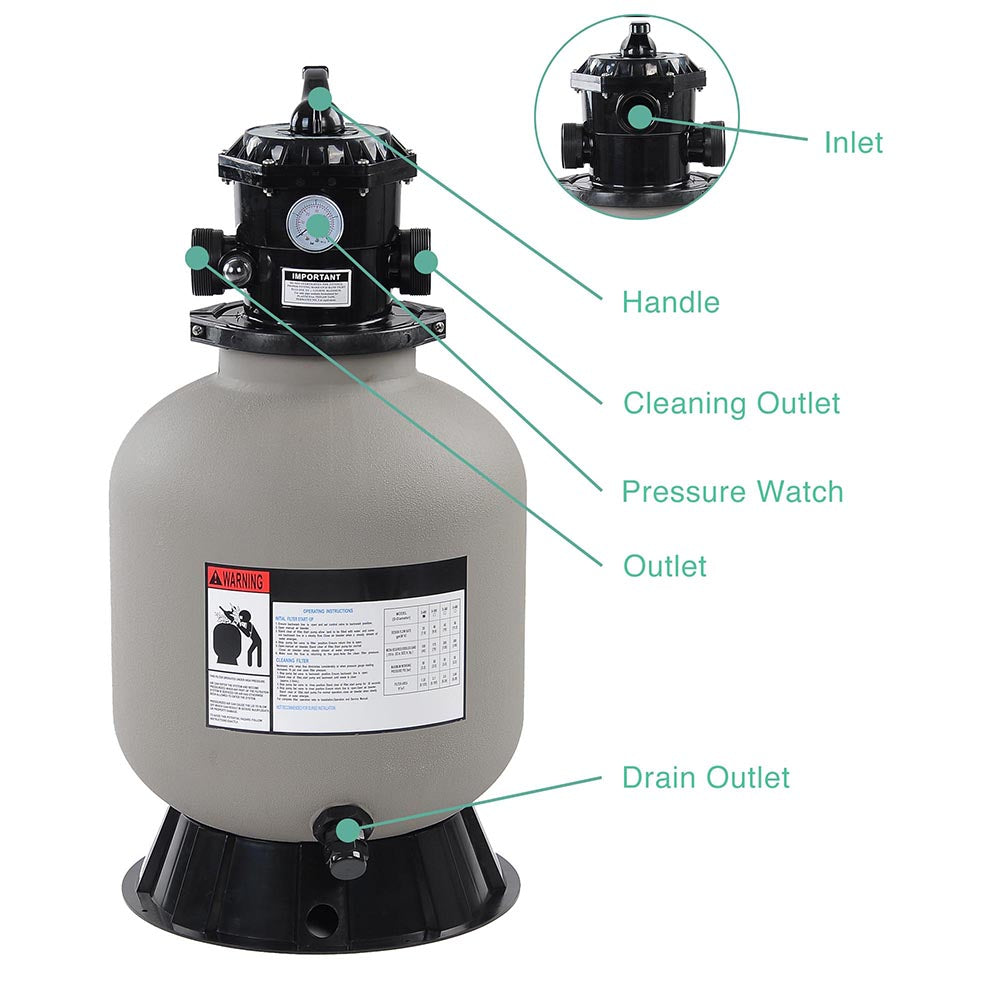

Summer is hot, swimming feels cool. But purify your swimming pool before plunge into the water. Our brand new 16" Sand Filter will help filtration perfect.
FEATURES
- Suggested Installation: Fits 0.35 to 1HP pool pump(Not Included), above-ground or in-ground pools
- Sand filter separates suspended substance from the water, can be used on swimming pool and fish pond
- 7-Way controlling valve features 7 functions for filtering, backwashing, draining & circulating
- Filter with high flow rate for fast flowing and reducing filtering time; Meter for showing pressure
- Accessories included for easy install: assemble filter & install valve; 2 different types of adaptors for rigid/flexible hose
- PP material with 30% gas permeable performance for providing good permeability and durability
SPECIFICATIONS
- Overall Dimension of Filter Tank(Dia.xH): 15 9/16" x 31 11/16" (39.6 x 80.5 cm)
- Overall Dimension of Controlling Valve(LxWxH): 9 7/16" x 8 11/16" x 14 3/8" (24 x 22 x 36.5 cm)
- Handle Length: 4 5/16" (11 cm)
- Suitable Pipe Dia.: 1 7/8" (57.15cm), 1 15/16" (59.1cm)
- Design Flow Rate: 35 GPM (7.9 Cubic Per Hour)
- Max. Working Pressure: 50 PSI (3.5 Bar)
- Filter Area: 1.25 Square Feet (0.12 Square Meter)
- Applicable Pump Power: 0.35 to 1HP
- Required Filter Sand Type: 0.45 to 0.56 mm
- Required Sand: 100 Lbs (45 kg)
- Outer Material: PP + 30% Gas Permeable
- Net Weight: 17.6 Lbs (8 kg)
PACKAGE CONTENTS
- 1x Filter Tank(With Plug Installed)
- 1x Center Pipe
- 1x Controlling Valve
- 2x Clamp Kits(Installed)
- 2x Rigid Adaptors
- 1x Tube Adaptor
- 1x Bracket
- 1x Hanger
- 8x Laterals
- 1x Meter
- 1x O-Ring
- 2x Screw & Nut Sets
- 1x Base
- 1x Teflon Tape
- 1x Manual
Notice: Please note that pump is NOT INCLUDED.
